Space Logistics Robots
Maximize efficiency with our top-quality
SPACE LOGICTICS ROBOTS
Our Industrial Equipment in Action
Reduce Costs and Increase Efficiency
Empty Space Turns Into a Three-Dimensional Warehouse

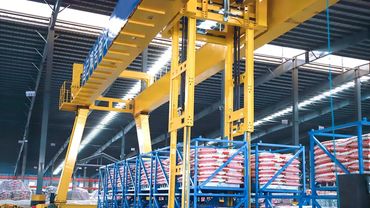

Space logistics robot used for yard logistics sorting completely subverts the traditional forklift sorting model. It is the optimal solution with its three main key components:
- Low infrastructure costs and standardized application.
- Three-dimensional storage without shelves.
- 3 times the storage capacity of forklift yards.
Our Products
Double arm series
T800 type
- Double arm type
- Maximum span: 30 meters
- Walking distance: 200 meters
- Load: 5 tons (maximum)
- Arm travel: 4.8~7.5 meters
- Factory height: 9~13 meters
T800-MINI type
- Double arm type
- Maximum span: 15 meters
- Walking distance: 200 meters
- Load: 3 tons (maximum)
- Arm travel: 1.8~4.5 meters
- Factory height: 3~8 meters
Single arm series
T200 type
- Single arm type
- Maximum span: 30 meters
- Walking distance: 200 meters
- Load: 3 tons (maximum)
- Arm travel: 2~4 meters
- Factory height: 6~8 meters
T600 type
- Single arm sleeve type
- Maximum span: 18 meters
- Walking distance: 200 meters
- Load: 0.3 tons (maximum)
- Arm travel: 3.5 meters
- Factory height: 7~13 meters
Lane type space logistics robot (H3000 type)
- Lane type space logistics robot
- Maximum span: 30 meters
- Walking distance: 200 meters
- Load: 1 ton (maximum)
- Arm travel: 9 meters
- Plant height: 4~11 meters
Servo three-dimensional warehouse (S1500 type)
- Servo three-dimensional warehouse
- Height: 3~40 meters
- Load: 50~10000kg
- Horizontal speed: 3~200 meters/minute
- Lifting speed: 3~60 meters/minute
Loading robot (LAP35 type)
- Loading robot
- Total length: 16.5 meters
- Loading chain plate length: 13.5 meters
- Loading width: 2.25~2.5 meters
- Loading height: 1.15~1.65 meters
- Load: 30 tons (maximum)
- Conveying speed: 15 meters/minute
